Wheel Sensor 1mm Standard

This item is currently out of stock, please see Wheel Sensor (BR2B) as an alternative.

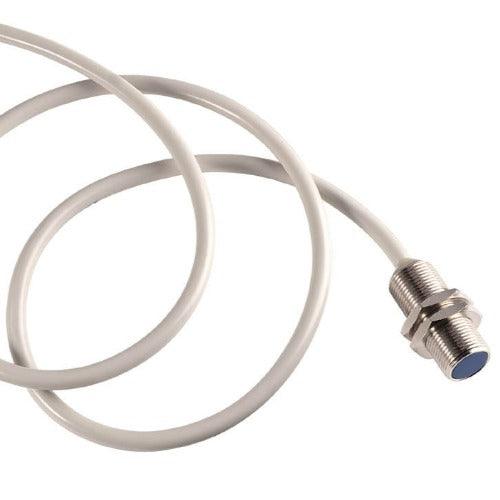

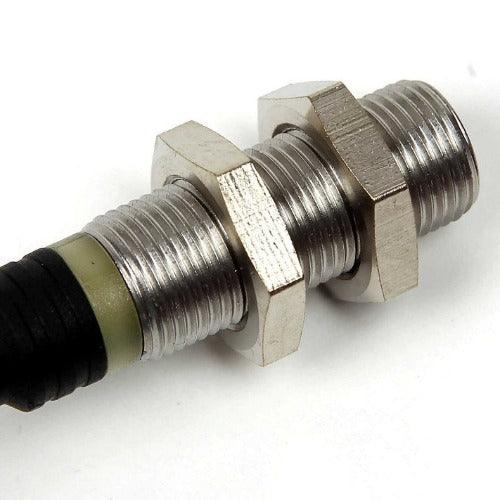

This almost universal 12mm diameter Wheel Sensor can be mounted on a suspension strut so that it picks up the bolt heads off the brake disk as they pass by. A minimum of 4 bolts is required, however 6 is recommended. The more pick-ups available. the more accurate the tripmeter will be. It has a 1mm sensing distance.

An alternative positioning for this type of sensor is to pick up on flying tabs (minimum of 2 positioned 180* apart) fastened on the bolts of the Prop Shaft's Universal Joint.

N.B. Old tripmeters (Pre-2005) can be upgraded to work with this sensor at the Brantz factory for a small charge, or free of charge if the meter comes in for a service.

Cable Length: 2.1m
